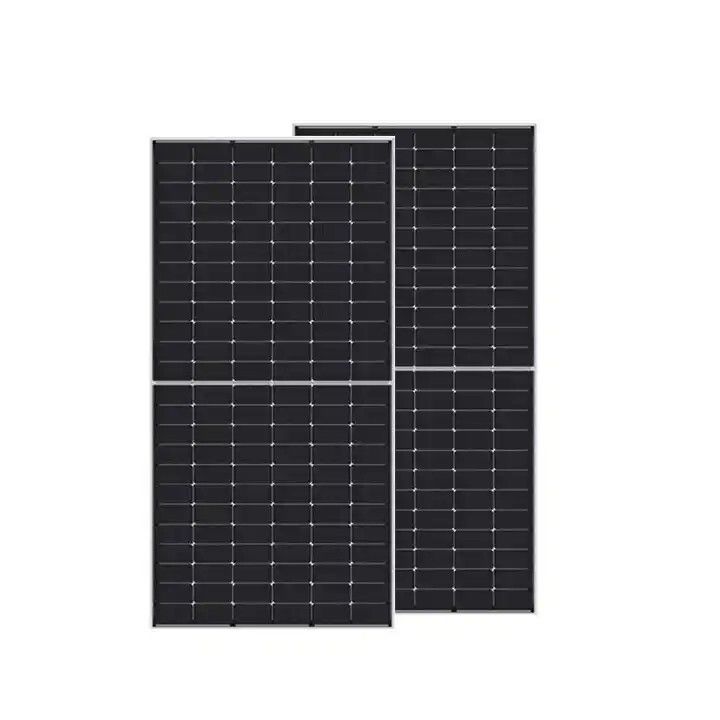

330w 1000V Solar Monocrystalline Panels 72 Cells Residential Solar Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-330M |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Product Name: | 330w Mono Solar Panels | Solar Cell: | Monocrystalline Silicon Solar Cell |
|---|---|---|---|
| Application: | Homes Camping | Contract Dimension: | 1950*992*40 |
| Back Sheet: | White | Protection Class: | IP 65 |
| Front Material: | 3.2mm High Transmission Tempered Glass | Output Cables: | 4 Mm²,Length:900mm |
| Highlight: | 330w solar monocrystalline panels,1000V solar monocrystalline panels,72 cells residential solar panels |
||
Product Description
330w 1000V Solar Monocrystalline Panels 72 Cells Residential Solar Panels
These 330W monocrystalline solar panels, rated at 1000V, feature 72 cells designed for residential use. They offer high efficiency and reliable performance, making them ideal for home energy solutions. Engineered for durability and optimal energy output, these panels ensure long-term cost savings and a reduced carbon footprint. Perfect for homeowners seeking sustainable and efficient energy sources, these panels provide a robust and eco-friendly solution for residential energy needs.
Product Features:
1) High photoelectric conversion efficiency:
The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, with the highest reaching 24%, which is currently the highest photoelectric conversion efficiency among all types of solar cells.
2)Low production cost:
The production cost of monocrystalline silicon solar cells is relatively low, and the technology is already very mature, so it has been widely used.
3)Long service life:
The service life of monocrystalline silicon solar cells is relatively long, generally reaching around 20 years, with the highest reaching 25 years.
4)Good low light performance:
Monocrystalline silicon solar cells can also perform well under low light conditions, making them suitable for use in solar lamps, solar lawn lamps, etc.
Product Details:
| Model | LS-330M |
| Maximum Power(Pmax) | 330W |
| Maximum Power Voltage(Vmp) | 36.89V |
| Maximum Power Current(Imp) | 8.95A |
| Open Circuit Voltage(Voc) | 46.12V |
| Short Circuit Current(Isc) | 9.64A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Mono-crystalline |
| Contract Dimensions(mm) | 1950*992*40mm |
| Weight(KGS) | 23kg |
| Protection Class | IP65 |
| Maximum System Voltage | 1000V |
| Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 16.86% |
| Cell number | 72(6x12) |
| Front Glass | 3.2mm High Transmission Tempered Glass |
| Frame Type | Anodized Aluminum Alloy |
| Connector Type | MC4 |
| Output Cables | 4 mm²,Length:900mm |
FAQ:
Q1: What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2: Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3: Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4: Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5: Where are your goods exported?
A:We can export to all over the world.
