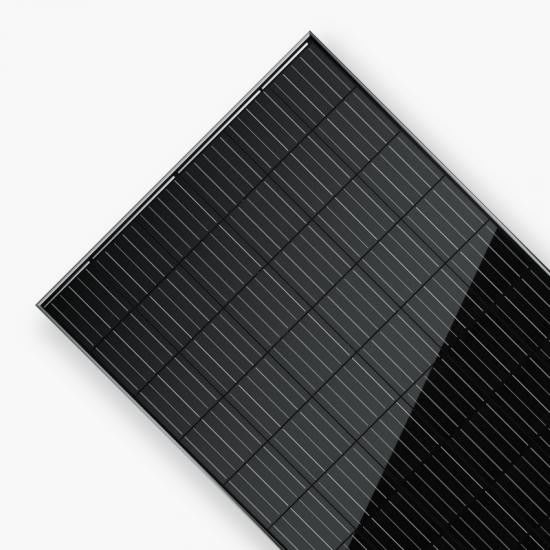

340w 37.5V Black Solar PV Panels Polycrystalline Solar Panels
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-340P |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Connector Type: | MC4 | Efficiency: | 17.25% |
|---|---|---|---|
| Power: | 340W | Product Name: | 340W Black Solar PV Panel |
| Size: | 1950*992*40mm | Temperature Range: | -40℃~+85℃ |
| Warranty: | 25 Years | Weight: | 23kg |
| Highlight: | 340w Black Solar PV Panels,37.5V Black Solar PV Panels,340 watt polycrystalline solar panels |
||
Product Description
Linksun 340w Black Polycrystalline solar panels
The 340W 37.5V Black Solar PV Panels with Polycrystalline cells offer high efficiency and a sleek design. Ideal for residential and commercial installations, these panels deliver reliable performance even in low-light conditions. The all-black aesthetic enhances visual appeal, blending seamlessly with modern architecture. Built to last, they ensure long-term durability and require minimal maintenance. Perfect for eco-conscious users, these panels help reduce electricity costs and carbon footprint, providing a sustainable and efficient energy solution for various applications.
Product Features:
1)Widely Use
Ideal for RVs, small houses, ships, household power supplies, commercial buildings, and more. It helps save electricity consumption and will save you more in the future.
2)Reliable and Durable
Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades.
3)Low production cost
The production cost of monocrystalline silicon solar cells is relatively low, and the technology is already very mature, so it has been widely used.
Product Details:
| Model | LS-340P |
| Maximum Power(Pmax) | 340W |
| Maximum Power Voltage(Vmp) | 37.5V |
| Maximum Power Current(Imp) | 9.65A |
| Open Circuit Voltage(Voc) | 46.35V |
| Short Circuit Current(Isc) | 9.85A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Poly-crystalline |
| Contract Dimensions(mm) | 1950*992*40mm |
| Weight(KGS) | 23kg |
| Protection Class | IP65 |
| Maximum System Voltage | 1000V |
| Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 17.25% |
| Cell number | 72(6x12) |
| Front Glass | 3.2mm High Transmission Tempered Glass |
| Frame Type | Anodized Aluminum Alloy |
| Connector Type | MC4 |
| Output Cables | 4 mm²,Length:900mm |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
