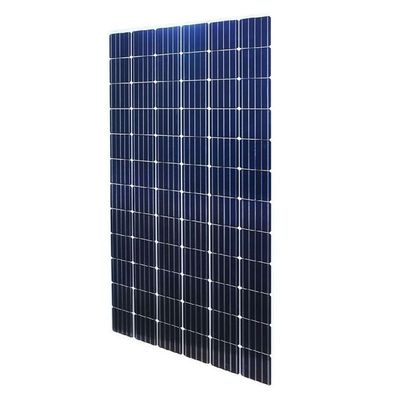

410w IP68 Solar Panel Bifacial N Type Bifacial Solar Panel Frameless
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-D410M |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Connector: | MC4 | Efficiency: | 21.00% |
|---|---|---|---|
| Material: | Mono-crystalline | Operating Temperature: | -40°C To +85°C |
| Power: | 410W | Product Name: | 410W Frameless Solar Panel |
| Size: | 1722*1134*5.5mm(67.80x44.65x0.22 Inches) | Type: | N Type Mono-crystalline ,182x91mm |
| Warranty: | 25 Years | Waterproof Level: | IP68 Rated |
| Weight: | 23kg | ||
| Highlight: | 410w solar panel bifacial,IP68 solar panel bifacial frameless,410 watt n type bifacial solar panel |
||
Product Description
Linksun Mono Bi-facial 410w Double glass,frameless M10 TOPCON for large public buildings
The 410W IP68 Bifacial N-Type Frameless Solar Panel is designed for high efficiency and durability. Its bifacial technology captures sunlight from both sides, boosting energy output. The frameless design and IP68 rating ensure robust performance and resistance to water and dust, making it ideal for challenging environments. With N-type cells, this panel offers superior efficiency and longevity, perfect for commercial and industrial installations. It provides reliable and sustainable energy solutions for large-scale solar projects
Product Features:
1)High aesthetics
The overall frameless design of the double glass frameless photovoltaic module is more aesthetically pleasing and can be integrated into the exterior of the building.
2)Good weather resistance and reliability
Adopting a double glass design can effectively improve the weather resistance and reliability of the component, and extend its service life.
3)More convenient installation
Due to the borderless design, installation is more convenient and fast, reducing installation costs and labor hours.
4)Higher power generation efficiency
By adopting more advanced production processes and materials, the photoelectric conversion efficiency is improved, resulting in higher power generation compared to traditional components.
Product Details:
| Model | LS-D410M |
| Maximum Power(Pmax) | 410W |
| Maximum Power Voltage(Vmp) | 31.25V |
| Maximum Power Current(Imp) | 13.12A |
| Open Circuit Voltage(Voc) | 37.94V |
| Short Circuit Current(Isc) | 13.85A |
| Power Tolerance(Positive) | 3% |
| Cell Type | N type Mono-crystalline ,182x91mm |
| Product Dimension(mm) | 1722*1134*5.5mm(67.80x44.65x0.22 inches) |
| Weight(KGS) | 23kg |
| Protection Class | IP68 rated |
| Maximum System Voltage | DC 1500V |
| Operating Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 21.00% |
| Cell number | 108(6x18)(Half-Cell) |
| Front Glass |
(F)2.0mm ultra clear embossed double layer colorless glass (B)2.0mm black mesh glazed tempered glass |
| Connector Type | MC4 |
| Output Cables | 4.0 mm²(0.006 inches²),Length:1100mm |
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.046%/℃ | Container | 40’GP |
| Temp.Coeff.of Voc(TK Voc) | -0.25%/℃ | Pieces per pallet | 72 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.30%/℃ | Pallets per container | 13 |
| Normal operating cell Temperature | 45±2℃ | Pieces per container | 936 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
