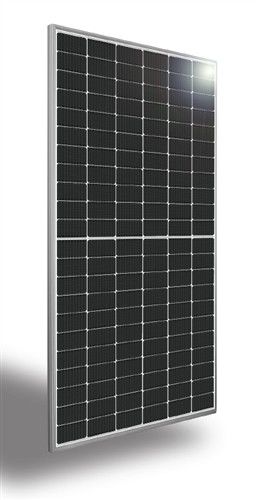

520W Monocrystalline Silicon Solar Panels Corrosion Resistant Aluminum Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE、BSCI |
| Model Number: | LS-520M |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Dimensions: | 2279*1134*5.5mm(89.72x44.64x0.22inches) | Efficiency: | 20.12% |
|---|---|---|---|
| Minimum Order: | 100pcs | Power Tolerance: | 0-+3% |
| Protection Class: | IP68 Rated | Weight(kgs): | 31.5kg |
| Connector Type: | MC4 | Cell Number: | 144(6x24)(Half-Cell) |
| Highlight: | 520W Mono Crystalline Solar Panels,520w Silicon Solar Panels,Corrosion Resistant Aluminum Monocrystalline Silicon Panels |
||
Product Description
Linksun Monocrystalline 520w Silicon Solar Panels With 25 Years Warranty
Our 520W monocrystalline silicon solar panels are designed for high efficiency and long-lasting performance. Utilizing advanced technology, these panels ensure optimal energy output and reliability. Built to withstand severe weather conditions, they are perfect for residential, commercial, and industrial applications. Backed by a 25-year warranty, these panels offer a sustainable and cost-effective energy solution, providing peace of mind and an excellent return on investment.
Product Features:
1)High Efficiency
High modules conversion efficiency. Grade A solar cell and IP68 Rated waterproof solar panel connectors. This solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty.
2)Reliable and Durable
Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP68 rated junction box and solar connectors can withstand dirt, dust, debris, and water splashes.
3)High Tolerance
It can tolerate any part of the battery's shading, and performs well in low light conditions due to an increase in the number of batteries receiving more sunlight.
Product Details:
| Model | LS-D520M |
| Maximum Power(Pmax) | 520W |
| Maximum Power Voltage(Vmp) | 41.02V |
| Maximum Power Current(Imp) | 12.68A |
| Open Circuit Voltage(Voc) | 48.94V |
| Short Circuit Current(Isc) | 13.53A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Mono-crystalline PERC,182x91mm |
| Product Dimension(mm) | 2279*1134*5.5mm(89.72x44.64x0.22inches) |
| Weight(KGS) | 31.5kg |
| Protection Class | IP68 rated |
| Maximum System Voltage | DC 1500V |
| Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 20.12% |
| Cell number | 144(6x24)(Half-Cell) |
| Front Glass |
(F)2.0mm ultra clear embossed double layer colorless glass (B)2.0mm semi-tempered glass |
| Connector Type | MC4 |
| Output Cables | 4.0 mm²(0.006 inches²),Length:1300mm |
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.048%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.27%/℃ | Pieces per pallet | 72 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.34%/℃ | Pallets per container | 10 |
| Normal operating cell Temperature | 44±2℃ | Pieces per container | 720 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
