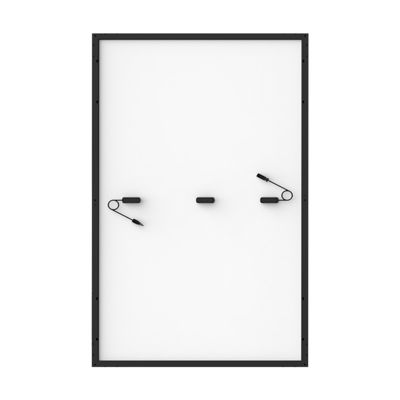

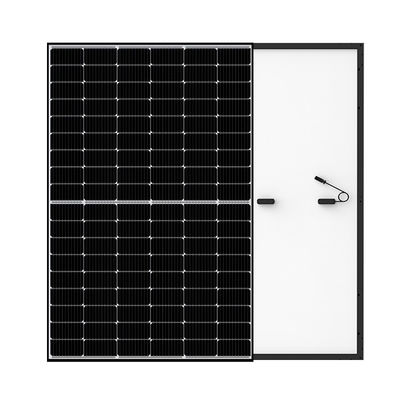

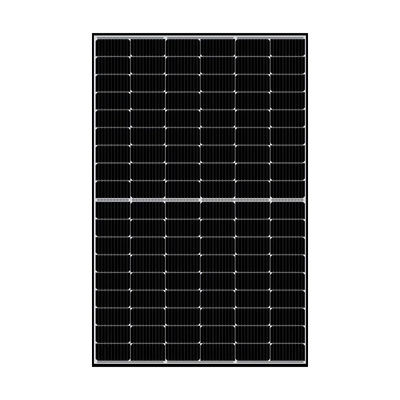

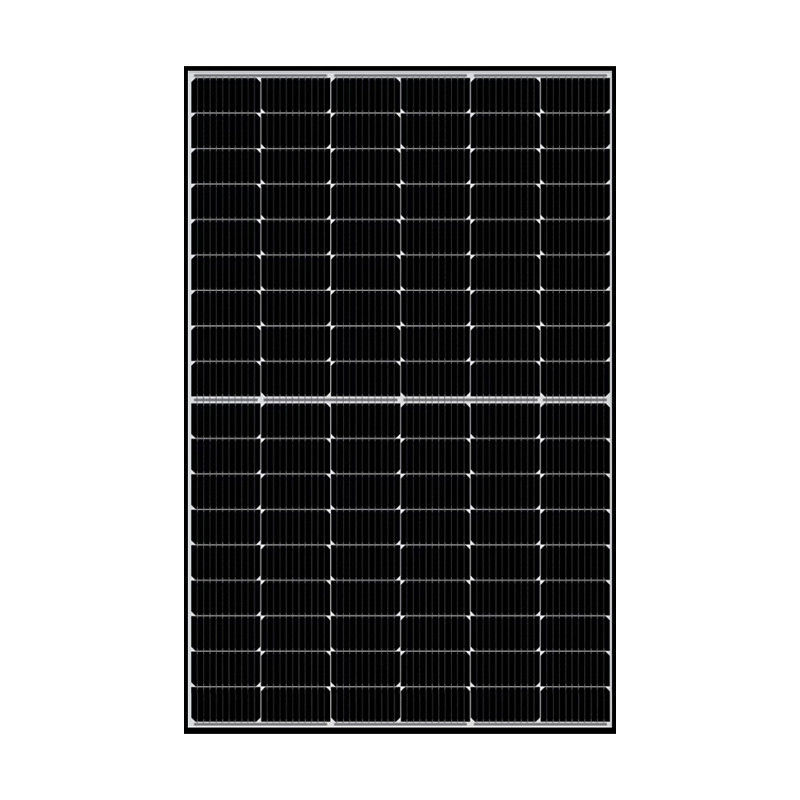

390W Mono Solar Panel Solar Monocrystalline Panels 1722 X 1134 X 30mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-390-415M-108 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Product Name: | Mono Solar Panel | Solar Cell: | Monocrystalline Silicon Solar Cell |
|---|---|---|---|
| Application: | RV, Boat And Yacht | Contract Dimension: | 1722*1134*30mm(67.79x44.64x1.18 Inches) |
| Benefits: | Durable,Convenient,Waterproof | Warranty: | 5 Years |
| Protection Class: | IP68 Rated | Front Material: | 3.2mm High Transmission Tempered Glass(0.13 Inches) |
| Output Cables: | 4.0 Mm²(0.006 Inches²),Length:1100mm | ||
| Highlight: | 390W Mono Solar Panel,415w Mono Solar Panel,solar monocrystalline panels 1722 X 1134 X 30mm |
||
Product Description
390W Mono Solar Panel Solar Monocrystalline Panels 1722 X 1134 X 30mm
1) High photoelectric conversion efficiency:
The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, with the highest reaching 24%, which is currently the highest photoelectric conversion efficiency among all types of solar cells.
2)Low production cost:
The production cost of monocrystalline silicon solar cells is relatively low, and the technology is already very mature, so it has been widely used.
3)Long service life:
The service life of monocrystalline silicon solar cells is relatively long, generally reaching around 20 years, with the highest reaching 25 years.
4)Good low light performance:
Monocrystalline silicon solar cells can also perform well under low light conditions, making them suitable for use in solar lamps, solar lawn lamps, etc.
5)Strong radiation resistance:
Monocrystalline silicon solar cells have strong radiation resistance, which can resist radiation such as ultraviolet and infrared rays.
Product Details:
| Model | LS-390M | LS-395M | LS-400M | LS-405M | LS-410M | LS-415M |
| Maximum Power(Pmax) | 390W | 395W | 400W | 405W | 410W | 415W |
| Maximum Power Voltage(Vmp) | 30.41V | 30.62V | 30.83V | 31.04V | 31.25V | 31.47V |
| Maximum Power Current(Imp) | 12.83A | 12.90A | 12.98A | 13.05A | 13.12A | 13.19A |
| Open-Circuit Voltage(Voc) | 36.53V | 36.73V | 36.93V | 37.13V | 37.33V | 37.53V |
| Short-Circuit Current(Isc) | 13.62A | 13.69A | 13.76A | 13.83A | 13.90A | 13.97A |
| Power Tolerance(Positive) |
0-+3%
|
|||||
| Module Efficiency STC | 19.9% | 20.20% | 20.46% | 20.72% | 20.97% | 21.23% |
| Operating Temperature Range | -40°C - 85°C | |||||
| Maximum System Voltage | DC 1500V | |||||
| Cell Type | Mono-crystalline PERC,182x91mm | |||||
| Cell number | 108(6x18)(Half-Cell) | |||||
| Product Dimension(mm) | 1722*1134*30mm(67.79x44.64x1.18 inches) | |||||
| Weight(kgs) | 21.5kg | |||||
| Front Glass | 3.2mm High Transmission Tempered Glass(0.13 inches) | |||||
| Frame Type | Silver,Anodized Aluminum Alloy | |||||
| Protection Class | IP68 rated | |||||
| Connector Type | MC4 | |||||
| Output Cables | 4.0 mm²(0.006 inches²),Length:1100mm | |||||
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.048%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.27%/℃ | Pieces per pallet | 72 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.34%/℃ | Pallets per container | 13 |
| Normal operating cell Temperature | 44±2℃ | Pieces per container | 936 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:How can we guarantee quality?
A:We always prepare a sample production before bulk production and have a final strict inspection before shipment.
