300w To 340w All Black Solar Panels Solar Panel Monocrystalline
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-300-340M-72 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Product Name: | Black Solar PV Panel | Solar Cell: | Monocrystalline Silicon Solar Cell |
|---|---|---|---|
| Application: | RV, Boat And Yacht,Van And Car,Outdoor Camping,off-grid | Contract Dimension: | 1950*992*40 |
| Benefits: | Durable,Convenient,Waterproof | Back Sheet: | Black |
| Warranty: | 5 Years | Protection Class: | IP 65 |
| Front Material: | 3.2mm High Transmission Tempered Glass | Output Cables: | 4 Mm²,Length:900mm |
| Highlight: | 300w black solar panels,340w black solar panels,1000V solar panel monocrystalline |
||
Product Description

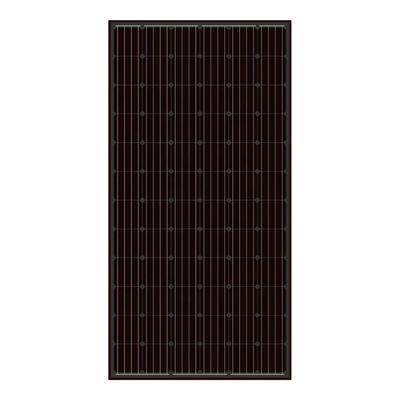

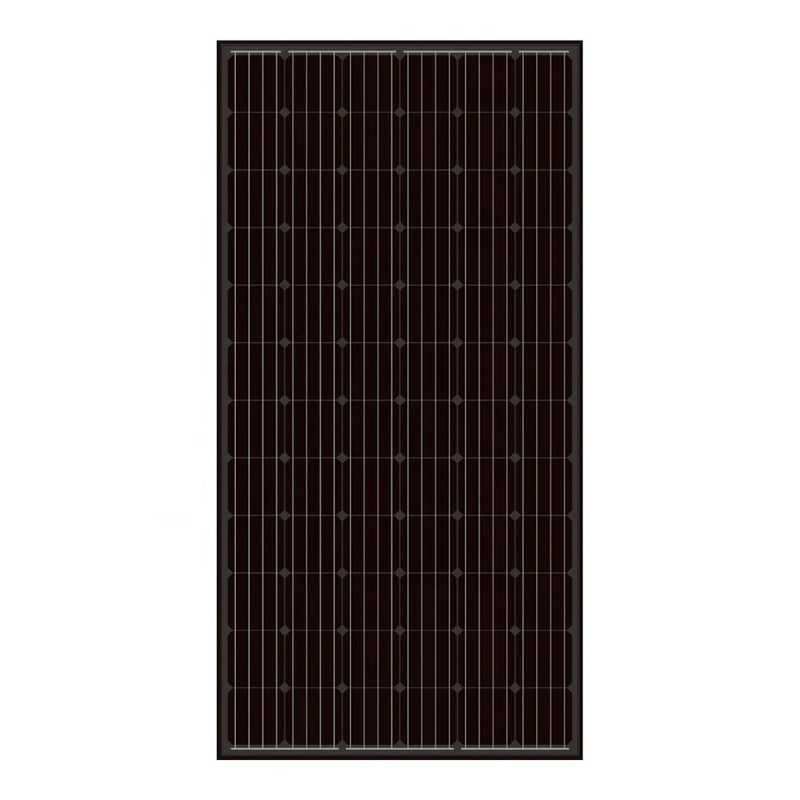

Linksun all black 300w-340w monocrystalline solar panels
These all-black 300W-340W monocrystalline solar panels deliver exceptional efficiency and a sleek, modern appearance for both residential and commercial use. Designed for maximum energy output, they perform excellently in various light conditions. Their robust construction ensures durability and longevity, withstanding harsh weather elements. The aesthetically pleasing all-black design integrates seamlessly with any roof type. Installation is simplified with pre-drilled holes and compatibility with diverse mounting systems, making them an ideal solution for reliable, sustainable energy.
Product Features
1)Widely Use
Ideal for RVs, small houses, ships, household power supplies, commercial buildings, and more. It helps save electricity consumption and will save you more in the future.
2)Reliable and Durable
Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades.
3)Low production cost
The production cost of monocrystalline silicon solar cells is relatively low, and the technology is already very mature, so it has been widely used.
Product Details:
| Model | LS-300M | LS-310M | LS-320M | LS-330M | LS-340M |
| Maximum Power(Pmax) | 300W | 310W | 320W | 330W | 340W |
| Maximum Power Voltage(Vmp) | 36.2V | 36.5V | 36.63V | 36.89V | 37.5V |
| Maximum Power Current(Imp) | 8.28A | 8.49A | 8.74A | 8.95A | 9.65A |
| Open-Circuit Voltage(Voc) | 45.5V | 45.65V | 45.82V | 46.12V | 46.35V |
| Short-Circuit Current(Isc) | 9.11A | 9.34A | 9.42A | 9.64A | 9.85A |
| Power Tolerance(Positive) |
3%
|
||||
| Module Efficiency STC | 15.62% | 16.28% | 16.66% | 16.86% | 17.25% |
| Operating Temperature Range | -40°C - 85°C | ||||
| Maximum System Voltage | 1000V | ||||
| Cell Type | Mono-crystalline | ||||
| Cell number | 72(6x12) | ||||
| Product Dimension(mm) | 1950*992*40 | ||||
| Weight(kgs) | 23 | ||||
| Front Glass | 3.2mm High Transmission Tempered Glass | ||||
| Frame Type | Anodized Aluminum Alloy | ||||
| Protection Class | IP65 | ||||
| Connector Type | MC4 | ||||
| Output Cables | 4 mm²,Length:900mm | ||||
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
