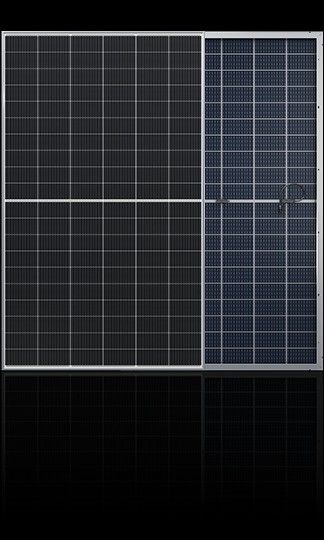

390 Watt 30.41V Bifacial Solar Panels 390W Mono Perc Bifacial Panel 108 Cells
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-390M |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Cell Type: | Mono-crystalline PERC,182x91mm | Connector Type: | MC4 |
|---|---|---|---|
| Dimension: | 1722*1134*30mm(67.79x44.64x1.18 Inches) | Efficiency: | 19.95% |
| Frame: | Black,Anodized Aluminum Alloy | Junction Box: | IP68 Rated |
| Maximum System Voltage: | DC 1500V | Temperature Range: | -40°C~+85°C |
| Type: | Bifacial Solar Panels | Warranty: | 25 Years |
| Weight: | 25.5kg | ||
| Highlight: | 390 watt Bifacial Solar Panels,30.41V Bifacial Solar Panels 108 cells,390W mono perc bifacial panel |
||
Product Description
390 Watt 30.41V Bifacial Solar Panels 390W Mono Perc Bifacial Panel 108 Cells
The 390 Watt Bifacial Solar Panels feature 108 Mono PERC cells and operate at 30.41V, delivering high efficiency and performance. Designed to capture sunlight from both sides, these panels significantly boost energy output. Ideal for residential, commercial, and industrial applications, they maximize power generation by utilizing reflected light. Their robust construction ensures durability and long-term reliability. With advanced bifacial technology and a sleek design, these panels provide an excellent solution for sustainable energy needs, helping to reduce electricity costs and support environmental sustainability.
Product Features:
1)Higher efficiency
With the ability of capturing sunlight from both sides,our product of bifacial solar panel can provide up to 21,96% more efficient compared with the common solar panel.
2)Easy to install and use
The pre-drilled holes on the back of the panel make it quick to mount on the roof or other situation.
3)Advanced Technology
As one of the most efficient solar technologies in the industry,HJT technology can make products less affected by changes in temperature. Bifacial products pass more sunlight up to 95%.
Product Details:
| Model | LS-390M |
| Maximum Power(Pmax) | 390W |
| Maximum Power Voltage(Vmp) | 30.41V |
| Maximum Power Current(Imp) | 12.83A |
| Open Circuit Voltage(Voc) | 36.53V |
| Short Circuit Current(Isc) | 13.62A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Mono-crystalline PERC,182x91mm |
| Product Dimension(mm) | 1722*1134*30mm(67.79x44.64x1.18 inches) |
| Weight(KGS) | 25.5kg |
| Protection Class | IP68 rated |
| Maximum System Voltage | DC 1500V |
| Operating Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 19.95% |
| Cell number | 108(6x18)(Half-Cell) |
| Front Glass |
(F)2.0mm ultra clear embossed semi-tempered coated glass (B)2.0mm semi-tempered glass |
| Frame Type | Black,Anodized Aluminum Alloy |
| Connector Type | MC4 |
| Output Cables | 4.0 mm²(0.006 inches²),Length:1100mm |
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.048%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.27%/℃ | Pieces per pallet | 72 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.34%/℃ | Pallets per container | 13 |
| Normal operating cell Temperature | 44±2℃ | Pieces per container | 936 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
