410 Watt IP68 Bifacial Solar Panels Crystalline With Black Frame Monocrystalline HJT
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-410M |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Cable: | 4.0 Mm²(0.006 Inches²),Length:1100mm | Cell Type: | Mono-crystalline PERC,182x91mm |
|---|---|---|---|
| Connector: | MC4 | Dimensions: | 1722*1134*30mm(67.79x44.64x1.18 Inches) |
| Efficiency: | 20.97% | Frame: | Black,Anodized Aluminum Alloy |
| Junction Box: | IP68 Rated | Operating Temperature: | -40°C To 85°C |
| Type: | Bifacial Solar Panels | Warranty: | 25 Years |
| Weight: | 25.5kg | ||
| Highlight: | 410 watt Bifacial Solar Panels,IP68 Bifacial Solar Panels,410W crystalline solar panels |
||
Product Description

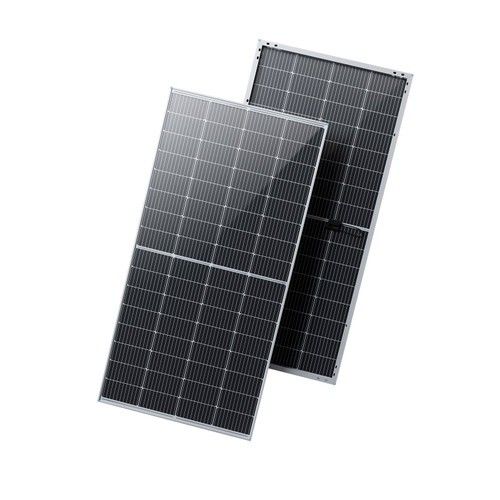

410 Watt IP68 Bifacial Solar Panels Crystalline With Black Frame Monocrystalline HJT
The 410 Watt Bifacial Solar Panels feature IP68-rated protection and advanced HJT monocrystalline technology, ensuring high efficiency and durability. With a sleek black frame, these panels capture sunlight from both sides, significantly boosting energy output. Ideal for residential, commercial, and industrial applications, they maximize power generation by utilizing reflected light. Their robust construction guarantees long-term performance and reliability. Designed for optimal energy efficiency, these panels provide an excellent solution for reducing electricity costs and supporting sustainable energy initiatives.
Product Features:
1)Higher efficiency
With the ability of capturing sunlight from both sides,our product of bifacial solar panel can provide up to 21,96% more efficient compared with the common solar panel.
2)Easy to install and use
The pre-drilled holes on the back of the panel make it quick to mount on the roof or other situation.
3)Advanced Technology
As one of the most efficient solar technologies in the industry,HJT technology can make products less affected by changes in temperature. Bifacial products pass more sunlight up to 95%.
Product Details:
| Model | LS-410M |
| Maximum Power(Pmax) | 410W |
| Maximum Power Voltage(Vmp) | 31.25V |
| Maximum Power Current(Imp) | 13.12A |
| Open Circuit Voltage(Voc) | 37.33V |
| Short Circuit Current(Isc) | 13.90A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Mono-crystalline PERC,182x91mm |
| Product Dimension(mm) | 1722*1134*30mm(67.79x44.64x1.18 inches) |
| Weight(KGS) | 25.5kg |
| Protection Class | IP68 rated |
| Maximum System Voltage | DC 1500V |
| Operating Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 20.97% |
| Cell number | 108(6x18)(Half-Cell) |
| Front Glass |
(F)2.0mm ultra clear embossed semi-tempered coated glass (B)2.0mm semi-tempered glass |
| Frame Type | Black,Anodized Aluminum Alloy |
| Connector Type | MC4 |
| Output Cables | 4.0 mm²(0.006 inches²),Length:1100mm |
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.048%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.27%/℃ | Pieces per pallet | 72 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.34%/℃ | Pallets per container | 13 |
| Normal operating cell Temperature | 44±2℃ | Pieces per container | 936 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
