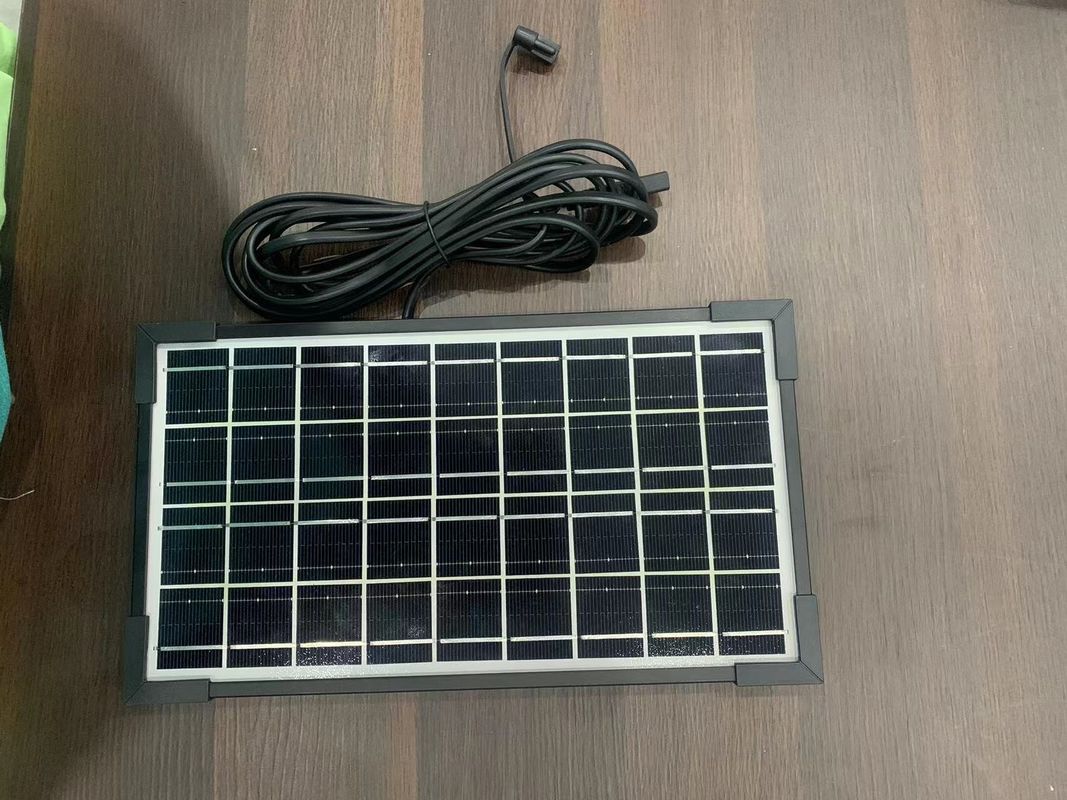

5W Mono Solar Panels 600V With 25 Years Warranty
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE、BSCI |
| Model Number: | LS-5M |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Cell Type: | 5W Mono Solar Panels 600V With 25 Years Warranty | Certifications: | CE, BSCI |
|---|---|---|---|
| Product Dimension(mm): | 270*150*17mm | Efficiency: | 22% |
| Output Cables: | 4 Mm²,Length:1300mm | Protection Class: | IP68 |
| Type Of Connector: | MC4 | Warranty: | 25 Years |
| Highlight: | 5W Mono Solar Panels,600V Mono Solar Panels,25 Years Warranty Mono Solar Panels |
||
Product Description
5W Mono Solar Panels 600V With 25 Years Warranty
Solar panels harness the sun's energy, which is a renewable and abundant resource. By using solar power, you reduce reliance on finite fossil fuels, contributing to a cleaner and more sustainable energy future.
Product Features:
1)High Efficiency
High modules conversion efficiency. Grade A solar cell and IP68 Rated waterproof solar panel connectors. This solar panel has 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty.
2)Reliable and Durable
Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The IP68 rated junction box and solar connectors can withstand dirt, dust, debris, and water splashes.
3)High Tolerance
It can tolerate any part of the battery's shading, and performs well in low light conditions due to an increase in the number of batteries receiving more sunlight.
Product Details:
| Model | LS-05M |
| Maximum Power(Pmax) | 5W |
| Maximum Power Voltage(Vmp) | 18V |
| Maximum Power Current(Imp) | 0.28A |
| Open Circuit Voltage(Voc) | 22.4V |
| Short Circuit Current(Isc) | 0.3A |
| Power Tolerance(Positive) | 3% |
| Cell Type | N type Mono-crystalline,182x91mm |
| Product Dimension(mm) | 265*175*17mm |
| Weight(KGS) | 0.5kg |
| Protection Class | IP68 |
| Maximum System Voltage | 1500V DC-(H) |
| Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 21.48% |
| Cell number | 36 |
| Front Glass |
(F)2.0mm ultra clear embossed double layer colorless glass (B)2.0mm semi-tempered glass |
| Connector Type | MC4 |
| Output Cables | 4 mm²,Length:1300mm |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
