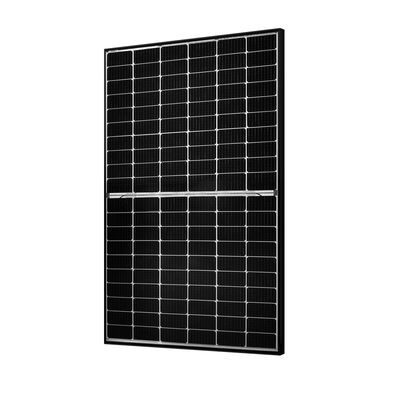

370 Watt 1500V Bifacial Solar Panels Charger 37.11V Black Frame Solar Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-D370M |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Connector: | MC4 | Dimensions: | 1755*1038*30mm(69.09x40.87x1.18 Inches) |
|---|---|---|---|
| Efficiency: | 20.31% | Junction Box: | IP68 Rated |
| Material: | Mono-crystalline Bifacial HJT,166x83mm | Maximum System Voltage: | DC 1500V |
| Operating Temperature: | -40°C To +85°C | Power: | 370W |
| Type: | Bifacial Solar Panels | Warranty: | 25 Years |
| Weight: | 23.5kg | ||
| Highlight: | 370 watt Bifacial Solar Panels,1500V Bifacial Solar Panels,37.11V black frame solar panel |
||
Product Description
370 Watt 1500V Bifacial Solar Panels Charger 37.11V Black Frame Solar Panel
The 370 Watt Bifacial Solar Panels are designed to operate at 1500V, featuring a stylish black frame for a sleek aesthetic. With a voltage of 37.11V, these panels harness energy from both sides, significantly boosting efficiency. Ideal for diverse applications, they capture additional reflected sunlight, enhancing overall power output. Durable and reliable, these panels are perfect for residential, commercial, and industrial installations, ensuring optimal performance and long-term savings. Their high-quality construction and advanced technology make them an excellent choice for sustainable energy solutions.
Product Features:
1)Higher efficiency
With the ability of capturing sunlight from both sides,our product of bifacial solar panel can provide up to 21,96% more efficient compared with the common solar panel.
2)Easy to install and use
The pre-drilled holes on the back of the panel make it quick to mount on the roof or other situation.
3)Advanced Technology
As one of the most efficient solar technologies in the industry,HJT technology can make products less affected by changes in temperature. Bifacial products pass more sunlight up to 95%.
Product Details:
| Model | LS-D370M |
| Maximum Power(Pmax) | 370W |
| Maximum Power Voltage(Vmp) | 37.11V |
| Maximum Power Current(Imp) | 9.98A |
| Open Circuit Voltage(Voc) | 43.96V |
| Short Circuit Current(Isc) | 10.38A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Mono-crystalline Bifacial HJT,166x83mm |
| Product Dimension(mm) | 1755*1038*30mm(69.09x40.87x1.18 inches) |
| Weight(KGS) | 23.5kg |
| Protection Class | IP68 rated |
| Maximum System Voltage | DC 1500V |
| Operating Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 20.31% |
| Cell number | 120(6x20)(Half-Cell) |
| Front Glass |
(F)2.0mm ultra clear embossed semi-tempered coated glass (B)2.0mm semi-tempered glass |
| Frame Type | Black,Anodized Aluminum Alloy |
| Connector Type | MC4 |
| Output Cables | 4.0 mm²(0.006 inches²),Length:1100mm |
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.04%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.24%/℃ | Pieces per pallet | 72 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.2%/℃ | Pallets per container | 13 |
| Normal operating cell Temperature | 44±2℃ | Pieces per container | 936 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
