375 Watt Anodized Bifacial Pv Panels Monofacial Solar Panel 6 X 20wells
Product Details:
| Place of Origin: | China |
| Brand Name: | Linksun |
| Certification: | CE |
| Model Number: | LS-D375M |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 5-8days |
| Payment Terms: | 30% TT in advance, 70% balance before delivery. |
| Supply Ability: | 1000pieces per week |
|
Detail Information |
|||
| Cell Type: | Mono-crystalline Bifacial HJT,166x83mm | Connector Type: | MC4 |
|---|---|---|---|
| Dimension: | 1755*1038*30mm(69.09x40.87x1.18 Inches) | Efficiency: | 20.59% |
| Frame: | Black,Anodized Aluminum Alloy | Junction Box: | IP68 Rated |
| Max System Voltage: | DC 1500V | Operating Temperature: | -40℃ To 85℃ |
| Type: | Bifacial Solar Panels | Warranty: | 25 Years |
| Weight: | 23.5kg | ||
| Highlight: | 375 watt bifacial pv panels,Anodized bifacial pv panels,375W monofacial solar panel |
||
Product Description

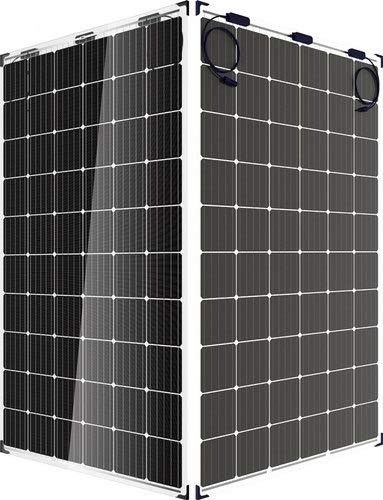

375 Watt Anodized Bifacial Pv Panels Monofacial Solar Panel 6 X 20wells
The 375 Watt Anodized Bifacial PV Panel features a sleek design with 6 x 20 cells for superior energy efficiency. This monofacial solar panel utilizes bifacial technology to capture sunlight from both sides, maximizing energy output. The anodized frame ensures enhanced durability and corrosion resistance, making it suitable for various environments. Ideal for residential, commercial, and industrial installations, this panel offers reliable and sustainable energy production. With its robust construction and high-performance monocrystalline cells, it guarantees long-lasting, efficient energy solutions.
Product Features:
1)Higher efficiency
With the ability of capturing sunlight from both sides,our product of bifacial solar panel can provide up to 21,96% more efficient compared with the common solar panel.
2)Easy to install and use
The pre-drilled holes on the back of the panel make it quick to mount on the roof or other situation.
3)Advanced Technology
As one of the most efficient solar technologies in the industry,HJT technology can make products less affected by changes in temperature. Bifacial products pass more sunlight up to 95%.
Product Details:
| Model | LS-D375M |
| Maximum Power(Pmax) | 375W |
| Maximum Power Voltage(Vmp) | 37.31V |
| Maximum Power Current(Imp) | 10.06A |
| Open Circuit Voltage(Voc) | 44.09V |
| Short Circuit Current(Isc) | 10.44A |
| Power Tolerance(Positive) | 3% |
| Cell Type | Mono-crystalline Bifacial HJT,166x83mm |
| Product Dimension(mm) | 1755*1038*30mm(69.09x40.87x1.18 inches) |
| Weight(KGS) | 23.5kg |
| Protection Class | IP68 rated |
| Maximum System Voltage | DC 1500V |
| Operating Temperature Range | -40℃~85℃ |
| Module Efficiency STC | 20.59% |
| Cell number | 120(6x20)(Half-Cell) |
| Front Glass |
(F)2.0mm ultra clear embossed semi-tempered coated glass (B)2.0mm semi-tempered glass |
| Frame Type | Black,Anodized Aluminum Alloy |
| Connector Type | MC4 |
| Output Cables | 4.0 mm²(0.006 inches²),Length:1100mm |
| Temperature Characteristics | Packing Configuration | ||
| Temp.Coeff.of Isc(TK Isc) | 0.04%/℃ | Container | 40’HQ |
| Temp.Coeff.of Voc(TK Voc) | -0.24%/℃ | Pieces per pallet | 72 |
| Temp.Coeff.of Pmax(TK Pmax) | -0.2%/℃ | Pallets per container | 13 |
| Normal operating cell Temperature | 44±2℃ | Pieces per container | 936 |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
